aluminium coil

aluminium coil

On 10 August, 2012 By haomei With aluminium alloy Materials

aluminium coil

Specifications

Alloy	Temper	Specification		weight
Alloy	Temper	Thickness(mm)	Width(mm)	weight
1050,1060,1100,3003, 3004,3105,5052,5005, 5754,5083,6061,6063 etc	O,H12,H14,H16,H18,H24,H26, H32,H34,H111,H112,T3,T5,T6 etc	0.01mm-10mm	800mm-1900mm	2000kg-3000kg

Chemical Composition of Aluminium coils

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	V<	Ti	Al
1050	0.25	0.4	0.05	0.05	0.05			0.05		99.5
1060	0.25	0.35	0.05	0.03	0.03	0.03	0.05	0.05	0.03	99.6
1100	0.95 Si+Fe		0.05–0.20	0.05			0.1			99
1350	0.1	0.4	0.05	0.01		0.01		0.05		99.5

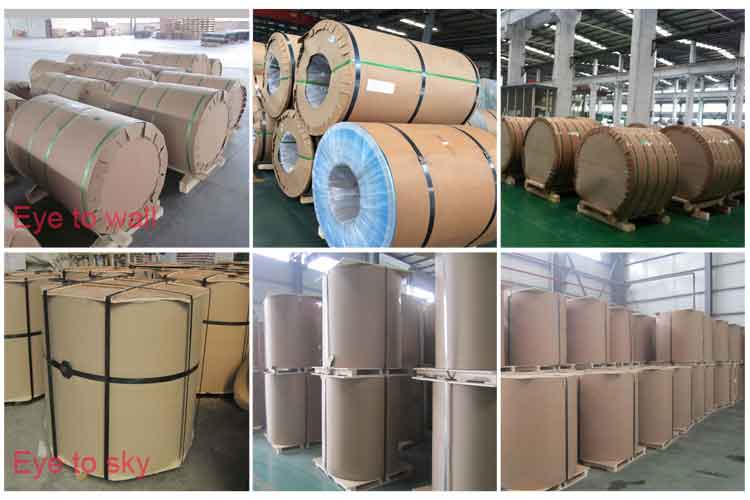

Aluminium coil packing

aluminium coil packing

We supply customized service if your demand is outside above range.
