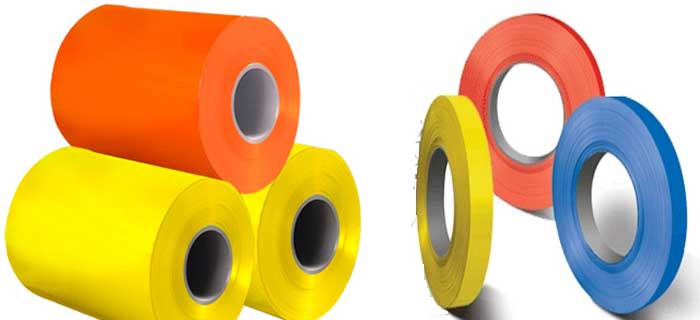

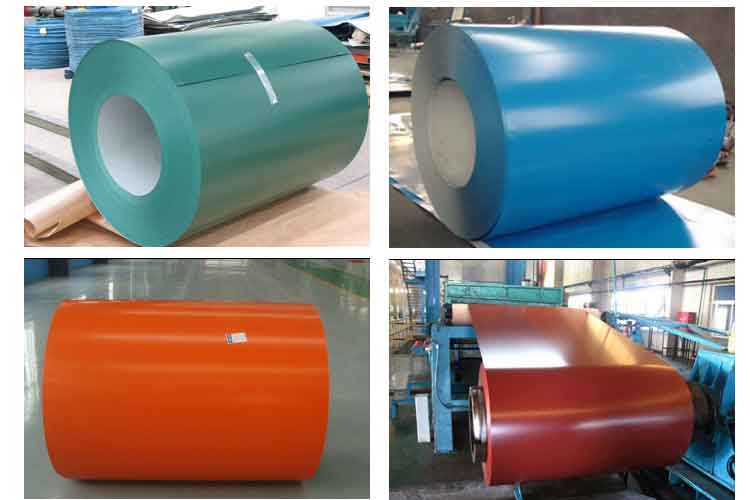

color coated aluminium coil can be used for roof and ceiling, curtain wall, Al-Plastic Panel or aluminum tile. we can supply all kind coated aluminium coil Features:
1) Process: pre-treatment, continuous painting and baking for times
2) Our products can keep excellent quality and stability
3) The color coated aluminum coils are used for curtain walls, ceilings, roofs and walls
4) Thickness: 0.2 - 3.0mm; width: 25 - 2350mm(above 0.21mm)
5)Packing:Export standard, wooden splint
| ubstrates: | Aluminium (AA1100, 3003, 3004, 3105, 5006, 5052, 8011, etc), etc. |
|---|---|
| Thickness: | 0.08-4.0mm |
| Width: | ＜1800mm |
| Coils core diameter: | 150mm ,405mm, 505mm, 508mm, 510mm |
| Coating thickness: | PVDF >=25micron POLYESTER>=18micron |
| Color standard: | E < 2 or it is not obvious by eyeballing |
| Pencil hardness: | > 2HB |
| Coating adhesive: | not lower than first grade Impact: no any crack (50kg/cm, ASTMD-2794:1993) |
| Bend stength: | >100 times |
| Boiling point: | no any distortion and color change (in the 99 more or less 1 degree water, then cooling 2 hours) |
| Corrosive: | surface deep in the 5% muriatic acid and 5% NaCL, interior deepin the 2% muriatic acid and 2% NaCL, after 48 hours, no change |
Color Match
1. For custom' color requests, we can deal as following:
A. Supply a physical sample of custom color. A color sample on metal is preferred. If other, it is also acceptable. But the color matching rate may be not good as color on metal.
B. New color sample is usually offered by our paint supplier in 5-7 days, special color should be in 7-10 days.
C. Upon receipt of color sample, please approve in writing as soon as possible. Once you approved, we will arrange purchasing and production.
Note: Color difference maybe occurred in different production batch, so it is suggested all panels are placed in one order for same project. And keep same direction as arrow on protective film when installing to avoid any color difference by vision.
2.For general colors, please refer to our color chart
